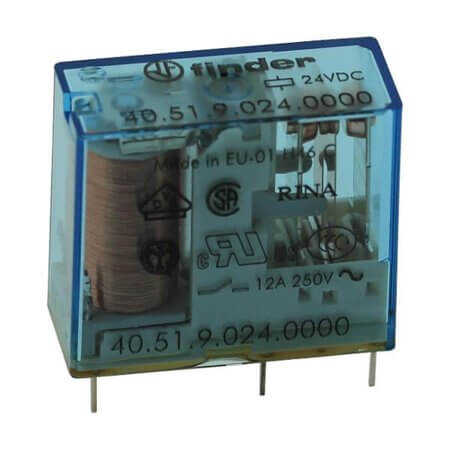

40.51.9.024.0000 RELAY POWER 10A 24VDC FINDER

40.51.9.024.0000 RELAY POWER 10A 24VDC FINDER Description

40.51.9.024.0000 RELAY POWER 10A 24VDC FINDER 40.51.9.024.0000 is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 250VAC and coil resistance of 900 Ohms. Features a coil power of 650mW and operates within a temperature range of -40°C~+85°C.Compact design with dimensions: length 29.00mm, width 12.40mm, and height 25.00mm.Manufactured by FINDER and compliant with ROHS standards. Packaged as BULK for convenience.

40.51.9.024.0000 RELAY POWER 10A 24VDC FINDER Technical Specifications

• Manufacturer: FINDER
• RelayType: Relay Power
• Series: 40
• MountingType: THT
• ContactForm: SPDT (1 Form C)
• CoilType: Non Latching
• ContactCurrent(Nom): 10A
• ContactCurrent(Max): 20A
• CoilVoltage: 24VDC
• CoilCurrent: 27mA
• ContactVoltage: 250VAC
• CoilResistance: 900 Ohms
• CoilPower: 650mW
• OperatingTemperature: -40°C~+85°C
• NumberofPins: 5 Pin
• Length: 29.00mm
• Width: 12.40mm
• Height: 25.00mm
• Rohs: ROHS
• Packaging: BULK

---
