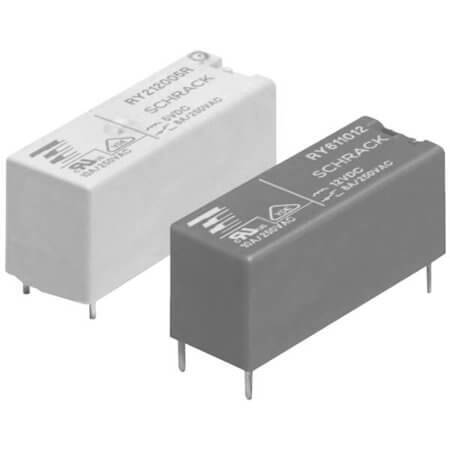

4-1393224-9 RELAY POWER 8A 24VDC PCB TYPE 5PIN RY211024

4-1393224-9 RELAY POWER 8A 24VDC PCB TYPE 5PIN RY211024 Description

4-1393224-9 RELAY POWER 8A 24VDC PCB TYPE 5PIN RY211024 4-1393224-9 is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 400VAC - Max and coil resistance of 2.35K Ohms. Features a coil power of 245mW and operates within a temperature range of -40°C~+70°C.Compact design with dimensions: length 28.50mm, width 10.10mm, and height 12.30mm.Manufactured by TE CONNECTIVITY and compliant with ROHS standards. Packaged as BULK for convenience.

4-1393224-9 RELAY POWER 8A 24VDC PCB TYPE 5PIN RY211024 Technical Specifications

• Manufacturer: TE CONNECTIVITY
• RelayType: Relay Power
• Series: RY2
• MountingType: THT
• ContactForm: SPDT (1 Form C)
• CoilType: Non Latching
• ContactCurrent(Nom): 8A
• ContactCurrent(Max):
• CoilVoltage: 24VDC
• CoilCurrent: 10.20mA
• ContactVoltage: 400VAC - Max
• CoilResistance: 2.35K Ohms
• CoilPower: 245mW
• OperatingTemperature: -40°C~+70°C
• NumberofPins: 5 Pin
• Length: 28.50mm
• Width: 10.10mm
• Height: 12.30mm
• Rohs: ROHS
• Packaging: BULK

---

You can click for product datasheet.
