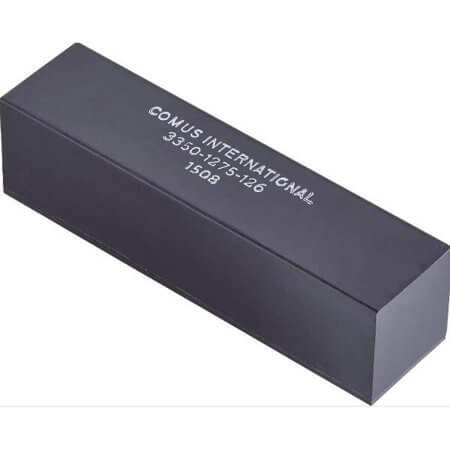

3350-1275-126 RELAY REED 3A 12V 200W HV

3350-1275-126 RELAY REED 3A 12V 200W HV Description

3350-1275-126 RELAY REED 3A 12V 200W HV 3350-1275-126 is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 3500VAC/3500VDC and coil resistance of 175 Ohms. Features a coil power of nan and operates within a temperature range of -20°C~+85°C.Compact design with dimensions: length 76.20mm, width 19.05mm, and height 20.57mm.Manufactured by COMUS and compliant with ROHS standards. Packaged as BULK for convenience.

3350-1275-126 RELAY REED 3A 12V 200W HV Technical Specifications

• Manufacturer: COMUS
• RelayType: Relay Reed
• Series: 3350
• MountingType: THT
• ContactForm: SPST-NO (1 Form A)
• CoilType: Non Latching
• ContactCurrent(Nom): 3A
• ContactCurrent(Max): 5A
• CoilVoltage: 12VDC
• CoilCurrent: 68.60mA
• ContactVoltage: 3500VAC/3500VDC
• CoilResistance: 175 Ohms
• CoilPower:
• OperatingTemperature: -20°C~+85°C
• NumberofPins: 4 Pin
• Length: 76.20mm
• Width: 19.05mm
• Height: 20.57mm
• Rohs: ROHS
• Packaging: BULK

---

You can click for product datasheet.
