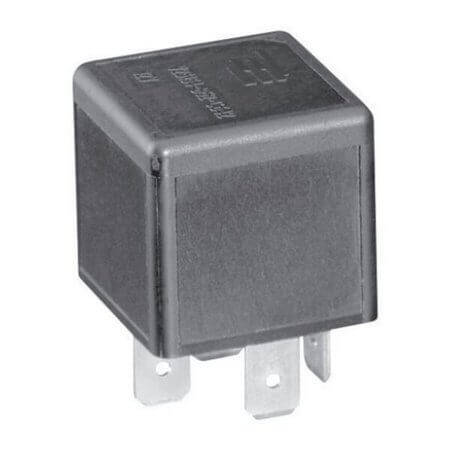

1393303-9 RELAY POWER 60A 24VDC SPST-NO PLUG-IN

1393303-9 RELAY POWER 60A 24VDC SPST-NO PLUG-IN Description

1393303-9 RELAY POWER 60A 24VDC SPST-NO PLUG-IN 1393303-9 is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 28VDC and coil resistance of 324 Ohms. Features a coil power of 1.80W and operates within a temperature range of -40°C~+125°C.Compact design with dimensions: length 26.00mm, width 26.00mm, and height 25.00mm.Manufactured by TE CONNECTIVITY and compliant with ROHS standards. Packaged as BULK for convenience.

1393303-9 RELAY POWER 60A 24VDC SPST-NO PLUG-IN Technical Specifications

• Manufacturer: TE CONNECTIVITY
• RelayType: Relay Power
• Series: F4
• MountingType: Socket
• ContactForm: SPST-NO (1 Form A)
• CoilType: Non Latching
• ContactCurrent(Nom): 20A
• ContactCurrent(Max):
• CoilVoltage: 24VDC
• CoilCurrent: 74.10mA
• ContactVoltage: 28VDC
• CoilResistance: 324 Ohms
• CoilPower: 1.80W
• OperatingTemperature: -40°C~+125°C
• NumberofPins: 4 Pin
• Length: 26.00mm
• Width: 26.00mm
• Height: 25.00mm
• Rohs: ROHS
• Packaging: BULK

---

You can click for product datasheet.
