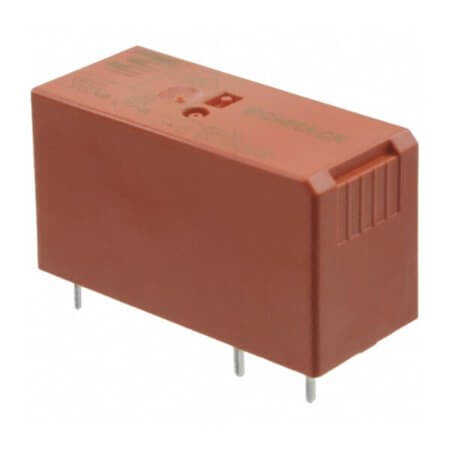

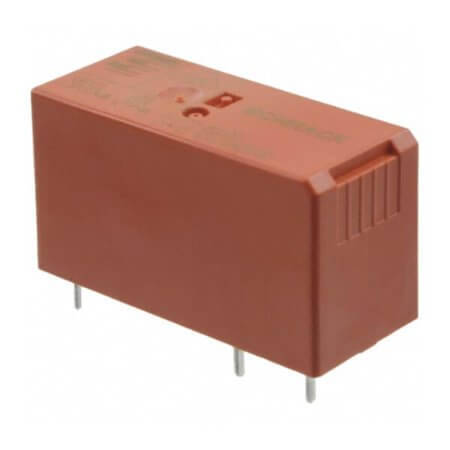

1393239-8 RELAY POWER 12A 6VDC SPDT RT114006

1393239-8 RELAY POWER 12A 6VDC SPDT RT114006 Description

1393239-8 RELAY POWER 12A 6VDC SPDT RT114006 1393239-8 is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 400VAC - Max and coil resistance of 90 Ohms. Features a coil power of 400mW and operates within a temperature range of -40°C~+85°C.Compact design with dimensions: length 29.00mm, width 12.70mm, and height 15.70mm.Manufactured by TE CONNECTIVITY and compliant with ROHS standards. Packaged as TUBE for convenience.

1393239-8 RELAY POWER 12A 6VDC SPDT RT114006 Technical Specifications

• Manufacturer: TE CONNECTIVITY
• RelayType: Relay Power
• Series: RT1
• MountingType: THT
• ContactForm: SPDT (1 Form C)
• CoilType: Non Latching
• ContactCurrent(Nom): 12A
• ContactCurrent(Max):
• CoilVoltage: 6VDC
• CoilCurrent: 66.70mA
• ContactVoltage: 400VAC - Max
• CoilResistance: 90 Ohms
• CoilPower: 400mW
• OperatingTemperature: -40°C~+85°C
• NumberofPins:
• Length: 29.00mm
• Width: 12.70mm
• Height: 15.70mm
• Rohs: ROHS
• Packaging: TUBE

---

You can click for product datasheet.
