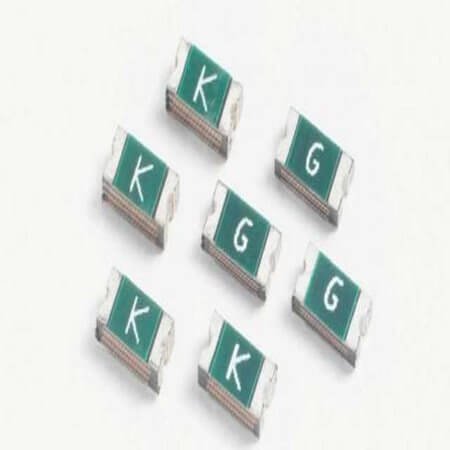

1206L020YR THERMISTOR PTC RESETTABLE FUSE 1206 200mA 24V SMT

1206L020YR THERMISTOR PTC RESETTABLE FUSE 1206 200mA 24V SMT Description

1206L020YR THERMISTOR PTC RESETTABLE FUSE 1206 200mA 24V SMT The 1206L020YR, manufactured by LITTELFUSE, is a high-performance PTC resettable fuse designed for thermistor ptc resettable fuse 1206 200ma 24v smt. It offers reliable overcurrent protection with a maximum voltage rating of 24V. The fuse features a trip time of 100ms, ensuring fast response to overcurrent events. Its compact dimensions of 3.20mm x 1.60mm x N/A allow for easy integration into various applications. Operating within a temperature range of -40°C~+85°C, it performs reliably in diverse environments. As a rohs-compliant product, it meets stringent environmental and safety standards. Packaged in tape&reel format, it ensures secure handling and storage. With its robust design and advanced features, the 1206L020YR is an excellent choice for professionals seeking reliable PTC fuse solutions.

1206L020YR THERMISTOR PTC RESETTABLE FUSE 1206 200mA 24V SMT Technical Specifications

• Manufacturer: LITTELFUSE
• MountingType: SMT
• Package/Case: 1206 (3216 Metric)
• Pitch:
• Resistance(Min): 650m Ohms
• Resistance(Max): 2.6 Ohms
• Current-Hold: 200mA
• Current-Trip: 420mA
• Current(Max): 100A
• Voltage(Max): 24V
• Time-Trip: 100ms
• Applications:
• Diameter:
• Length: 3.20mm
• Width: 1.60mm
• Height:
• OperatingTemperature: -40°C~+85°C
• Rohs: ROHS
• Packaging: TAPE&REEL

---

You can click for product datasheet.
