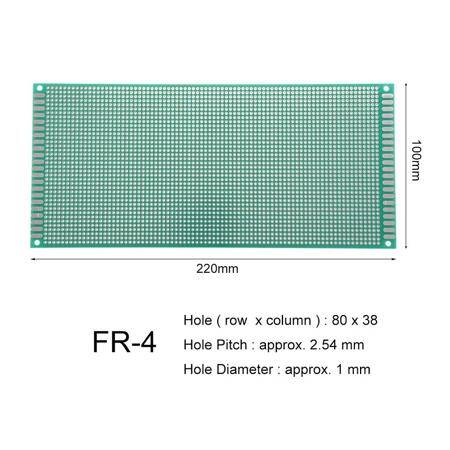

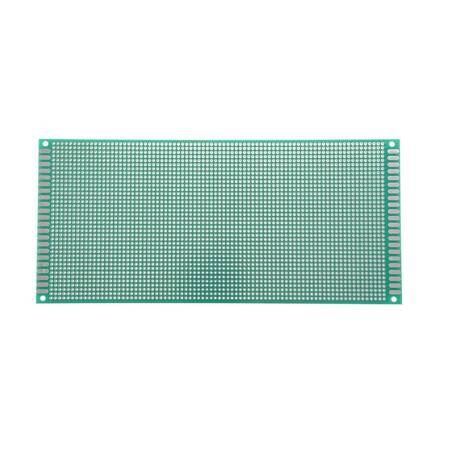

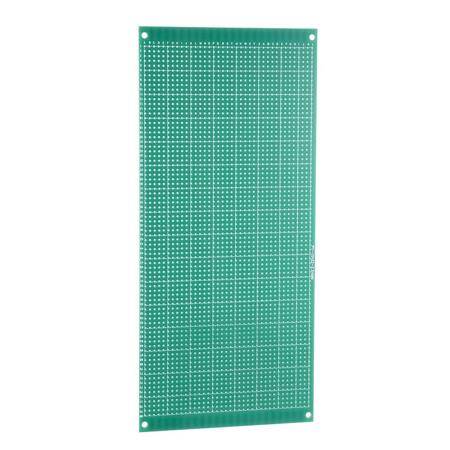

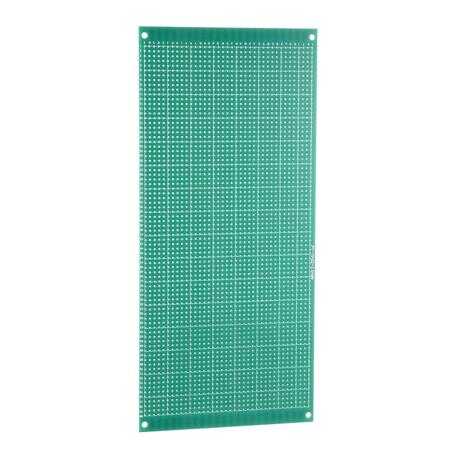

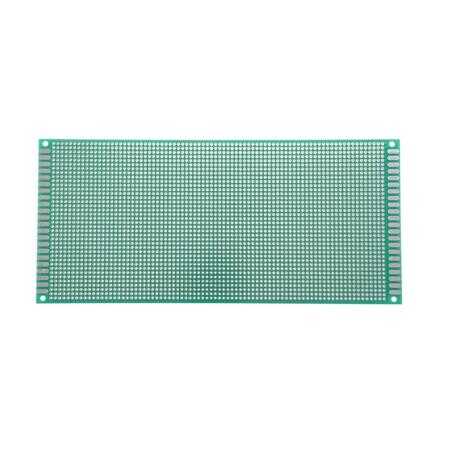

10x22cm Universal PCB Prototype Board Single-Sided 2.54mm Hole Pitch

10x22cm Universal PCB Prototype Board Single-Sided 2.54mm Hole Pitch Description

The 10x22cm Universal PCB Prototype Board Single-Sided 2.54mm Hole Pitch is a larger-sized board designed for extensive electronics prototyping. This board offers a spacious 10x22cm area, which is ideal for more complex and large-scale projects that require additional room for components and wiring. The single-sided layout simplifies the assembly process by providing a clean working surface for component placement and soldering. The standard 2.54mm hole pitch ensures compatibility with most through-hole components, making it highly versatile for a wide range of electronics projects. Whether you're working on a prototype for a custom device, testing circuit designs, or creating a small-to-medium sized electronic system, this PCB provides the flexibility and space needed to accomplish your tasks efficiently.

10x22cm Universal PCB Prototype Board Features

• Extra-Large Size: The 10x22cm size provides a large surface for more complex circuits, offering ample space for components, wiring, and connections.
• Single-Sided Design: The simplicity of a single-sided design makes it easy to access and solder components without needing to worry about double-sided routing.
• Standard Hole Pitch: The 2.54mm hole pitch is compatible with a wide range of components, including resistors, capacitors, diodes, and ICs.
• Durability: Constructed with high-quality fiberglass and copper-clad materials, this board is built to withstand the stresses of soldering and use in various electronic projects.
• Ideal for Prototyping: Perfect for engineers and DIY enthusiasts who need a reliable platform to create and test prototypes or experimental circuits.

10x22cm Universal PCB Prototype Board Specifications

• Size: 10x22cm
• Hole Pitch: 2.54mm
• Type: Single-sided PCB
• Material: High-quality fiberglass with copper-clad surface for optimal performance and durability
• Compatible Components: Works with standard through-hole components such as ICs, capacitors, resistors, diodes, and LEDs

10x22cm Universal PCB Prototype Board Applications

• Large-Scale Prototyping: Ideal for more advanced and complex circuit designs, offering plenty of room for intricate systems and multiple components.
• Custom Electronics Projects: Perfect for creating custom circuits for projects like home automation, sensor systems, or DIY audio equipment.
• Learning and Experimentation: An excellent tool for students and educators working on electronics experiments, offering a spacious area for hands-on learning.
• Research and Development: Used in R&D for creating, testing, and refining new products and technologies before scaling them for production.
