0.96" Inch SPI OLED LCD Module 6 Pin (With GND VCC) White SSD1306 Chip

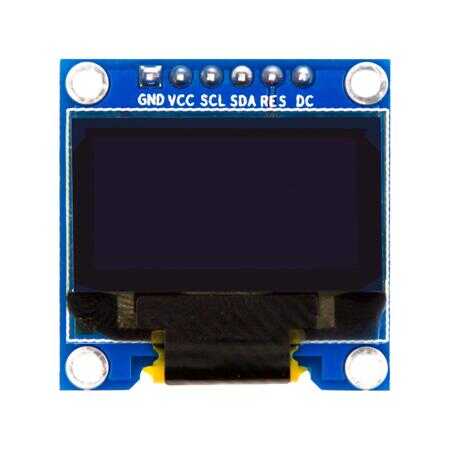

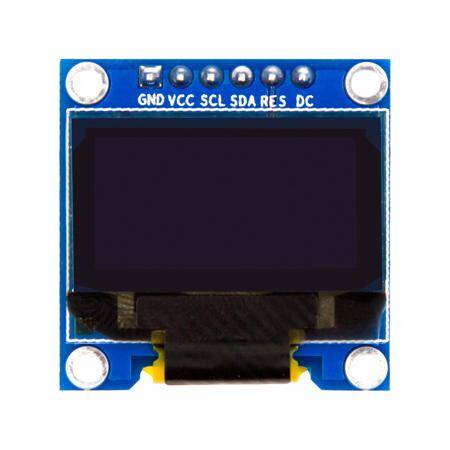

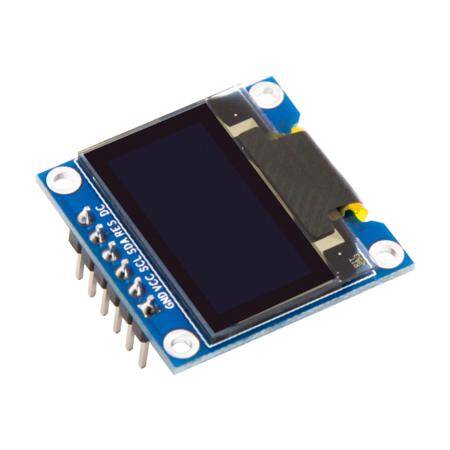

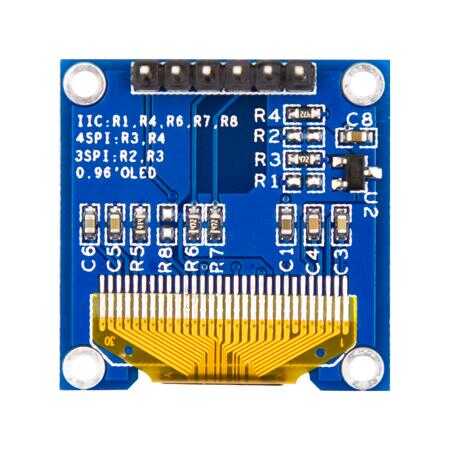

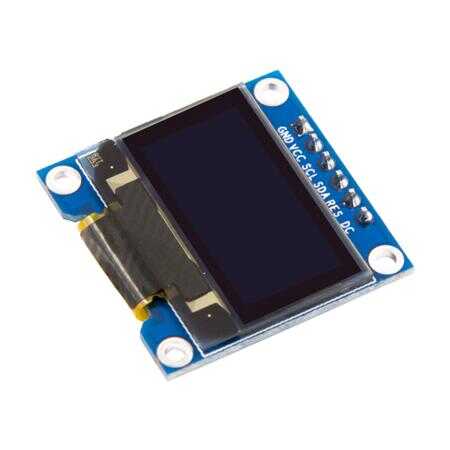

0.96 Inch SPI OLED LCD Module Description

The 0.96 Inch SPI OLED LCD Module is a compact and versatile display module with a resolution of 128x64 pixels, featuring a clear white monochrome OLED display. Powered by the SSD1306 driver chip, this module uses an SPI interface and provides a 6-pin connection (GND, VCC, CLK, DIN, CS, DC), ensuring high-speed communication with microcontrollers like Arduino, Raspberry Pi, and STM32. Its compact design and low power consumption make it ideal for IoT, wearable, and embedded system applications.

0.96 Inch SPI OLED LCD Module Features

• High Contrast Display: Crisp white monochrome OLED with a resolution of 128x64 pixels.
• SPI Interface: Fast and reliable data communication with microcontrollers.
• Energy Efficient: Optimized for low power consumption, ideal for battery-operated devices.
• Compact Design: Lightweight and small form factor, suitable for tight spaces.
• SSD1306 Driver Chip: Ensures reliable performance and compatibility with various libraries.

0.96 Inch SPI OLED LCD Module Specifications

• Display Size: 0.96 inches
• Resolution: 128x64 pixels
• Display Type: White monochrome OLED
• Chipset: SSD1306
• Interface: SPI (GND, VCC, CLK, DIN, CS, DC)
• Operating Voltage: 3.3V - 5V
• Operating Temperature: -30°C to +70°C
• Dimensions: Compact and lightweight

0.96 Inch SPI OLED LCD Module Applications

• IoT Devices: Displays real-time data, system status, and notifications in smart devices.
• Wearable Electronics: Perfect for use in smartwatches and other portable gadgets.
• Prototyping: Adds graphical display functionality to DIY projects.
• Embedded Systems: Enhances microcontroller-based designs with OLED displays.
• Educational Projects: Ideal for learning and experimenting with OLED and SPI technologies.
