0.96" Inch SPI OLED LCD Module 6 Pin (With GND VCC) Blue SSD1306 Chip

0.96 Inch SPI OLED LCD Module Description

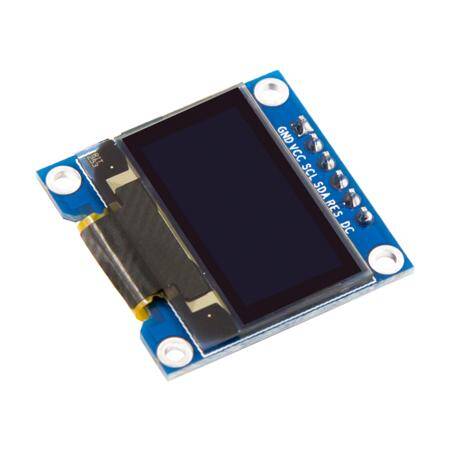

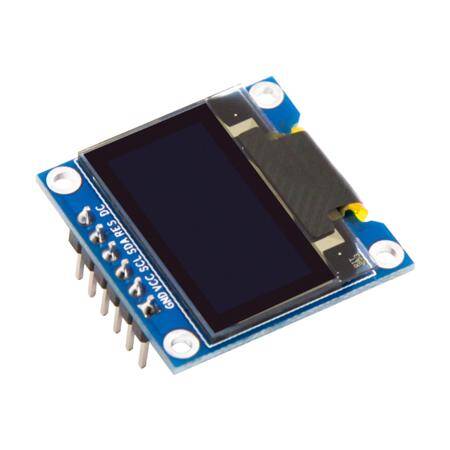

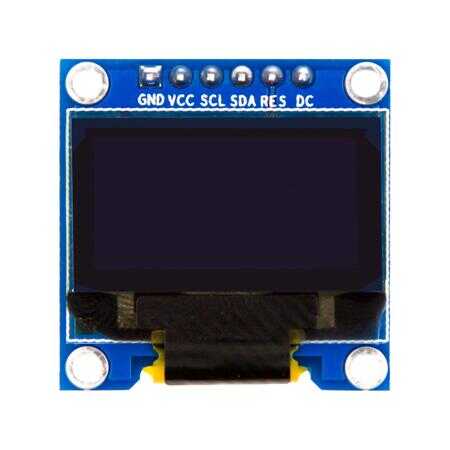

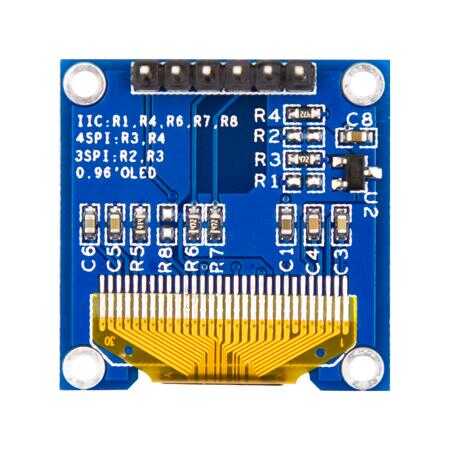

The 0.96 Inch SPI OLED LCD Module is a compact and high-performance display module with a resolution of 128x64 pixels, featuring the SSD1306 chip and a stunning blue monochrome display. This module uses an SPI interface and provides a 6-pin connection (GND, VCC, CLK, DIN, CS, DC), ensuring quick and easy communication with microcontrollers like Arduino, Raspberry Pi, and STM32. Its low power consumption and compact design make it suitable for IoT, wearable, and embedded systems.

0.96 Inch SPI OLED LCD Module Features

• High Contrast Display: Blue monochrome OLED with a resolution of 128x64 pixels.
• SPI Interface: Enables fast data communication with microcontrollers.
• Energy Efficient: Designed for low power consumption, perfect for battery-powered applications.
• Compact Design: Lightweight and small, ideal for tight spaces and portable projects.
• SSD1306 Driver Chip: Ensures reliable operation and compatibility with popular libraries.

0.96 Inch SPI OLED LCD Module Specifications

• Display Size: 0.96 inches
• Resolution: 128x64 pixels
• Display Type: Blue monochrome OLED
• Chipset: SSD1306
• Interface: SPI (GND, VCC, CLK, DIN, CS, DC)
• Operating Voltage: 3.3V - 5V
• Operating Temperature: -30°C to +70°C
• Dimensions: Compact and lightweight

0.96 Inch SPI OLED LCD Module Applications

• IoT Devices: Displays real-time data and system status in smart systems.
• Wearable Electronics: Used in portable devices like smartwatches and fitness trackers.
• Prototyping: Adds graphical interfaces to DIY and experimental projects.
• Embedded Systems: Enhances microcontroller-based designs with graphical displays.
• Educational Projects: Ideal for learning and experimenting with SPI and OLED technologies.
